Variant | Poles | A | kA | SS |
NM1-125C | 3P | 80,100 | 20 | 0 |
NM1-125C | 3P | 125 | 20 | 0 |
NM1-63S | 3P | 10,16,20,25,32,40,50,63 | 15 | 0 |
NM1-125S | 3P | 80,100 | 25 | 0 |
NM1-125S | 3P | 125 | 25 | 0 |
NM1-250S | 3P | 160,180,200,225 | 25 | 0 |
NM1-250S | 3P | 250 | 25 | 0 |
NM1-400S | 3P | 315,350,400 | 35 | 0 |
NM1-630S | 3P | 500,630 | 35 | 0 |
NM1-400S | 4P | 350,400 | 35 | 2 |
NM1-630S | 4P | 500,630 | 35 | 2 |
NM1-125H | 2P | 80,100,125 | 50 | 2 |
NM1-250H | 2P | 160,180,225 | 50 | 2 |
NM1-250H | 2P | 250 | 50 | 2 |
NM1-63H | 3P | 10,16,20,25,32,40,50,63 | 35 | 1 |
NM1-125H | 3P | 80,100 | 50 | 1 |
NM1-165H | 3P | 125 | 50 | 1 |
NM1-250H | 3P | 160,180,200,225 | 50 | 1 |
NM1-250H | 3P | 250 | 50 | 1 |
NM1-400H | 3P | 315,350,400 | 50 | 1 |
NM1-630H | 3P | 500,630 | 50 | 1 |
NM1-800H | 3P | 800 | 60 | 1 |
NM1-1250H | 3P | 1000, 1250 | 65 | 2 |
NM1-63H | 4P | 10,16,20,25,32,40,50,63 | 35 | 2 |
NM1-125H | 4P | 80,100 | 50 | 2 |
NM1-125H | 4P | 125 | 50 | 2 |
NM1-250H | 4P | 160,180,200,225 | 50 | 2 |
NM1-250H | 4P | 250 | 50 | 2 |
NM1-800H | 4P | 800 | 60 | 2 |
Variant |
Shunt Release (R), Under Voltage Release (R), Auxiliary Contact (L), Alarm Contact (L) |
Shunt Release (R), Under Voltage Release (R), Auxiliary Contact (L), Alarm Contact (L) |
Shunt Release (R), Under Voltage Release (R), Auxiliary Contact (L), Alarm Contact (L) |
Shunt Release (R), Under Voltage Release (R), Auxiliary Contact (L), Alarm Contact (L) |
Shunt Release (R), Under Voltage Release (R), Auxiliary Contact (L), Alarm Contact (L) |
Shunt Release (R), Under Voltage Release (R), Auxiliary Contact (L), Alarm Contact (L) |
Shunt Release (R), Under Voltage Release (R), Auxiliary Contact (L), Alarm Contact (L) |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |
Shunt Release, Under Voltage Release, Auxiliary Contact, Alarm Contact |

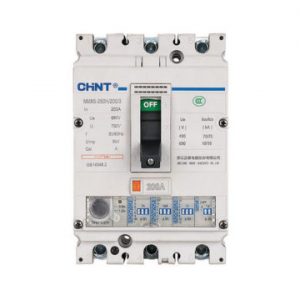

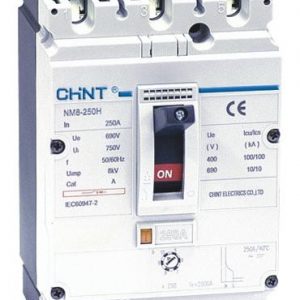

Variant | Poles | In (A) (0,8 – 1 x In) | kA | SS |
NM8-125S/16A | 3P | 16,20,25,32,40,50,63,80,100,125 | 50 | 1 |
NM8-250S/16A | 3P | 160,180,200,225,250 | 50 | 1 |
NM8-400S/16A | 3P | 315,350,400 | 70 | 1 |
NM8-630S/16A | 3P | 500 | 70 | 1 |
NM8-800S/16A | 3P | 800 | 50 | 1 |
NM8-1250S/16A | 3P | 1000, 1250 | 50 | 1 |
NM8-125S/4300 | 4P | 16,20,25,32,40,50,63,80,100,125 | 50 | 2 |
NM8-250S/4300 | 4P | 160,180,200,225,250 | 50 | 2 |
NM8-400S/4300 | 4P | 315,350,400 | 70 | 2 |
NM8-630S/4300 | 4P | 500 | 70 | 2 |
NM8-800S/4300 | 4P | 800 | 50 | 2 |
NM8-1250S/4300 | 4P | 1000, 1250 | 50 | 2 |
NM8-125H/2300 | 2P | 16,20,25,32,40,50,63,80,100,125 | 100 | 2 |
NM8-125H/3300 | 3P | 16,20,25,32,40,50,63,80,100,125 | 100 | 2 |
NM8-250H/3300 | 3P | 160,180,200,225,250 | 100 | 2 |
NM8-400H/3300 | 3P | 315,350,400 | 100 | 2 |
NM8-630H/3300 | 3P | 500 | 100 | 2 |
NM8-800H/3300 | 3P | 800 | 70 | 2 |
NM8-1250H/3300 | 3P | 1000, 1250 | 70 | 2 |
NM8-125H/4300 | 4P | 16,20,25,32,40,50,63,80,100,125 | 100 | 2 |
NM8-250H/4300 | 4P | 160,180,200,225,250 | 100 | 2 |
NM8-400H/4300 | 4P | 315,350,400 | 100 | 2 |
NM8-630H/4300 | 4P | 500 | 100 | 2 |
NM8-800H/4300 | 4P | 800 | 70 | 2 |
NM8-1250H/4300 | 4P | 1000, 1250 | 70 | 2 |
Variant | Poles | Current (A) | kA | SS |
NM8S-125S | 3P | 40,50,63,80,100,125 | 50 | 2 |
NM8S-250S | 3P | 160,200,250 | 50 | 2 |
NM8S-400S | 3P | 315,350,400 | 70 | 2 |
NM8S-630S | 3P | 500,630 | 70 | 2 |
NM8S-800S | 3P | 800 | 50 | 2 |
NM8S-1250S | 3P | 1000, 1250 | 50 | 2 |
NM8S-125S | 4P | 40,50,63,80,100,125 | 50 | 2 |
NM8S-250S | 4P | 160,200,250 | 50 | 2 |
NM8S-400S | 4P | 315,350,400 | 70 | 2 |
NM8S-630S | 4P | 500,630 | 70 | 2 |
NM8S-800S | 4P | 800 | 50 | 2 |
NM8S-1250S | 4P | 1000, 1250 | 50 | 2 |
NM8S-125H/3300 | 3P | 40,50,63,80,100,125 | 70 | 2 |
NM8S-250H/3300 | 3P | 160,200,250 | 70 | 2 |
NM8S-400H/3300 | 3P | 315,350,400 | 100 | 2 |
NM8S-630H/3300 | 3P | 500,630 | 100 | 2 |
NM8S-800H/3300 | 3P | 800 | 70 | 2 |
NM8S-1250H/3300 | 3P | 1000, 1250 | 70 | 2 |
NM8S-125H/4300 | 4P | 40,50,63,80,100,125 | 70 | 2 |
NM8S-250H/4300 | 4P | 160,200,250 | 70 | 2 |
NM8S-400H/4300 | 4P | 315,350,400 | 100 | 2 |
NM8S-630H/4300 | 4P | 500,630 | 100 | 2 |
NM8S-800H/4300 | 4P | 800 | 70 | 2 |
NM8S-1250H4300 | 4P | 1000, 1250 | 70 | 2 |
